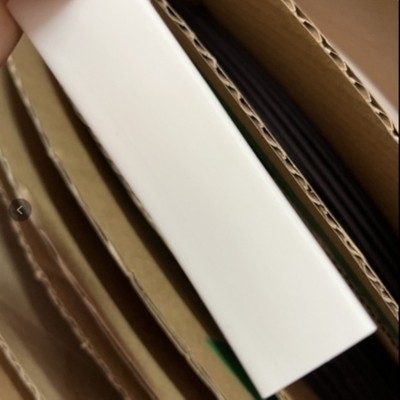

White Dual Wall Heat Shrink Tube

  • White Dual Wall Heat Shrink Tube
Place of Origin China
Brand Name Long
Certification ISO
Model Number 12.7mm
Minimum Order Quantity 1m
Price 0.05
Packaging Details Roll/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color White Size 12.7mm
Wall Dual Wall With Adhesive Shrinkage Low Longitudinal Shrinkage
Flame Retardant Flame Retardant (out Jacket Only) Super Sealing Against Water, Moisture Or Other Contaminates
Continuous Operating Temperature -45°C-125°C Fully Shrink Temperature Over 125°C
High Light

white Dual Wall Heat Shrink Tube

,

12.7mm Dual Wall Heat Shrink Tube

,

adhesive heat shrink tubing
Leave a Message
Product Description

12.7mm White Dual Wall Heat Shrink Tubing With Adhesive Shrink Ratio 3X





Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing .Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions. The outer polyolefin insulating flame-retardant material and the inner hot-melt adhesive can buffer mechanical strain and have strong sealing performance.Can be used easily.

Features



•  3:1 shrink ratio





•  Low longitudinal shrinkage



• Flame retardant (out jacket only)



• Super sealing against water, moisture or other contaminates



• Continuous operating temperature: -45°C-125°C



• Fully shrink temperature over 125°C





Dimensions



Inch mm Internal Diameter mm Internal Diameter mm Total Wall Thickness mm Adhesive Thickness mm Spool Length M/spool
3/32 2.4 2.4 0.8 0.80±0.30 0.40±0.20 200
1/8 3.2 3.2 1.0 0.90±0.30 0.40±0.20 200
3/16 4.8 4.8 1.6 1.05±0.30 0.40±0.20 100
1/4 6.4 6.4 2.2 1.25±0.30 0.45±0.20 100
5/16 7.9 7.9 2.7 1.35±0.30 0.50±0.20 100
3/8 9.5 9.5 3.2 1.45±0.30 0.50±0.20 50
1/2 12.7 12.7 4.2 1.65±0.30 0.50±0.20 1.22OR25M/Roll
5/8 15 15 5.2 1.80±0.30 0.55±0.30 1.22OR25M/Roll
3/4 19.1 19.1 6.3 1.95±0.30 0.60±0.30 1.22OR25M/Roll
1 25.4 25.4 8.5 2.00±0.40 0.60±0.30 1.22OR25M/Roll
1-1/4 30 30 10.2 2.15±0.40 0.65±0.30 1.22OR25M/R0II
1-1/2 39 39 13.5 2.45±0.40 0.60±0.30 1.22OR25M/Roll
2 50 50 17 2.75±0.40 0.75±0.30 1.22OR25M/Roll
5/2 64 64 21 3.05±0.40 0.80±0.30 1.22OR25M/Roll
3 75 75 25 3.05+0.40 1.0510.40 1.22OR25M/Roll
7/2 90 90 30 3.10±0.50 1.05±0.40 1.22OR25M/Roll
4 100 100 34 3.10±0.50 1.05±0.40 1.22OR25M/R0II
5 125 125 42 3.10±0.50 1.10±0.40 1.22OR25M/Roll





Technical Data





I Property Test Method Standard Typical Performance I
Tensile Strength(MPa) ASTM D2671 W0.4 11.5
Elongation(%) ASTM D2671 M300 450
Tensile Strength after aging (MPa) UI224 158°CX168hr N7.3 8.5
Elongation after aging(%) UI224 158°CX168hr N200 350
Flammability ASTM D2671B Self-extinguish within 30s Self-extinguish within 30s
Dieletric strength(kV/mm) IEC 60243 N15 17.5
Volume resistivity(Q.cm) IEC 60093 ^1X1014 2.5X1014





Hot Melt Adhesive Property





Property Test Method Stantard I
Water Absorption ASTM D570 <0.2%
Sofening Point(°C) ASTM E28 90±5
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm
