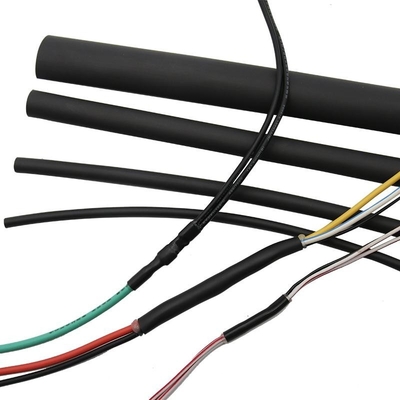

2 To 1 Dual Wall Heat Shrink Tube Watertight PE Shrink Tubing With Glue

Brand Name:	Long
Model Number:	2X
MOQ:	10m
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	400000m per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Features:

With Glue

Material:

Colour:

Black

Shrink Ratio:

2:1

Temperature:

-45-125

Fully Shirnk Temperature:

Over 125

Certificate:

ROHS

Internal Diameter Mm:

1.6mm

Packaging Details:

Roll/Carton/Pallet

Supply Ability:

400000m per day

Highlight:

2 to 1 Dual Wall Heat Shrink Tube

watertight Dual Wall Heat Shrink Tube

Watertight PE Shrink Tubing With Glue

Product Description

2X Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing Sealing Against Water Moisture

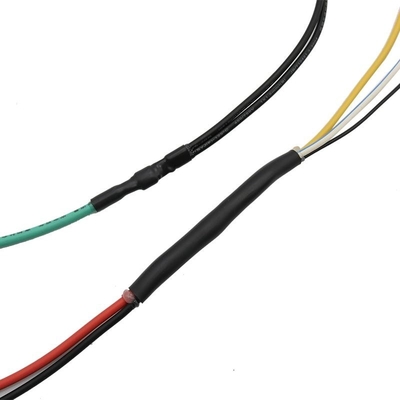

Adhesive lined heat shrink tubing with environmental sealing capability for

a wide variety of electrical applications, including automotive and marine

wire harness, wire splices, breakouts, and connector-to-cable transitions.

Features

• 2:1 shrink ratio

• Superior sealing against water, moisture or other contaminants

• Inner adhesive bonds to plastics, steel and polyethylene

• Out jacket flame retardant

• Continuous operating temperature:-45°C-125°C

• Fully shrink temperature:^125°C

Dimensions

Size		As Supplied	After Recovery			Standard Package
I Inch	mm	Internal Diameter mm	Internal Diameter mm	Total Wall Thickness mm	Adhesive Thickness mm	Spool Length M/spool
1/16	1.6	1.6	0.8	0.60±0.30	0.30±0.2	200
3/32	2.4	2.4	1.2	0.70±0.30	0.35±0.2	200
1/8	3.2	3.2	1.6	0.70±0.30	0.35±0.2	200
3/16	4.8	4.8	2.4	0.80±0.30	0.40±0.2	100
1/4	6.4	6.4	3.2	0.80±0.30	0.40±0.2	100
5/16	7.9	7.9	3.9	0.90±0.30	0.45+0.2	100
3/8	9.5	9.5	4.8	0.90±0.30	0.45±0.2	50
1/2	12.7	12.7	6.4	0.95±0.40	0.45±0.2	1.22OR25M/R0II
5/8	15.9	15.9	7.9	0.95±0.40	0.45±0.2	1.22OR25M/Roll
3/4	19.1	19.1	9.5	1.00±0.40	0.45±0.2	1.22OR25M/Roll
1	25.4	25.4	12.7	1.10±0.40	0.50±0.2	1.22OR25M/R0II
1 1/4	31.8	31.8	15	1.15±0.40	0.50±0.2	1.22OR25M/Roll
1 1/2	38.1	38.1	19	1.25±0.40	0.50±0.2	1.22OR25M/Roll
1/3/4	44.5	44.5	22	1.35±0.40	0.5510.2	1.22OR25M/R0II
2	50.8	50.8	25.4	1.50±0.40	0.60±0.2	1.22OR25M/Roll

Technical Data

I Property	Test Method	Standard	Typical Performance I
Tensile Strength(MPa)	ASTM D2671	mio.4	11.5
Elongation(%)	ASTM D2671	>300	450
Tensile Strength after aging (MPa)	UL224 158°CX168hr	N7.3	8.5
Elongation after aging(%)	UL224 158°CX168hr	N200	350
Dieletric strength(kv/mm)	IEC 60243	N15	17.5
Volume resistivity(Q.cm)	IEC 60093	^1X10¹⁴	2.5X10¹⁴
Flammability	ASTM D2671B	Self-extinguish within 30s

Hot Melt Adhesive Property

Property	Test Method	Stantard I
Water Absorption	ASTM D570	W0.2%
Sofening Point(°C)	ASTM E28	90±5
Strength of pearing(PE)	ASTM D 1000	120N/25mm
Strength of pearing(AL)	ASTM D 1000	80N/25mm
