2.4mm Dual Wall Heat Shrink Tube PE , 3x Polyolefin Heat Shrink Tubing

Brand Name:	Long
Model Number:	3/32(2.4mm)
MOQ:	1m
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	400000meter per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, ROHS

Material:

Colour:

Black

Shrink Ratio:

3:1

Feature:

Flame Retardant

Super Sealing Against:

Water

Fully Shrink Temperature:

Over 125

Used:

A Wide Variety Of Electrical Applications

Used Range:

Automotive And Marine Wire Harness, Wire Splices, Breakouts And Connector-to Cable

Packaging Details:

Roll/Carton

Supply Ability:

400000meter per day

Highlight:

2.4mm Dual Wall Heat Shrink Tube

PE Dual Wall Heat Shrink Tube

3x polyolefin heat shrink tubing

Product Description

3/32 2.4mm 3X PE Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing

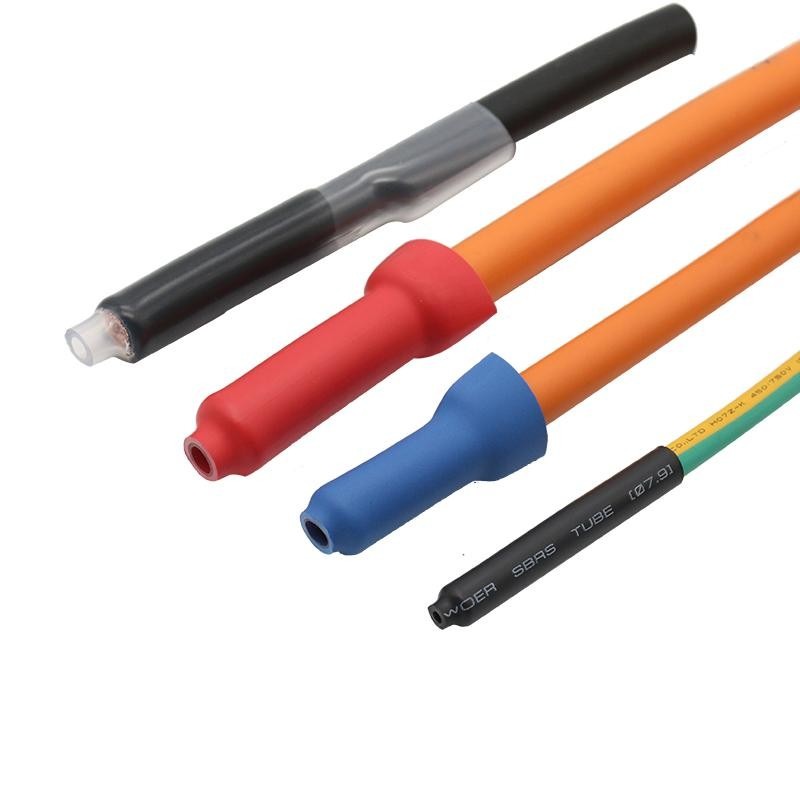

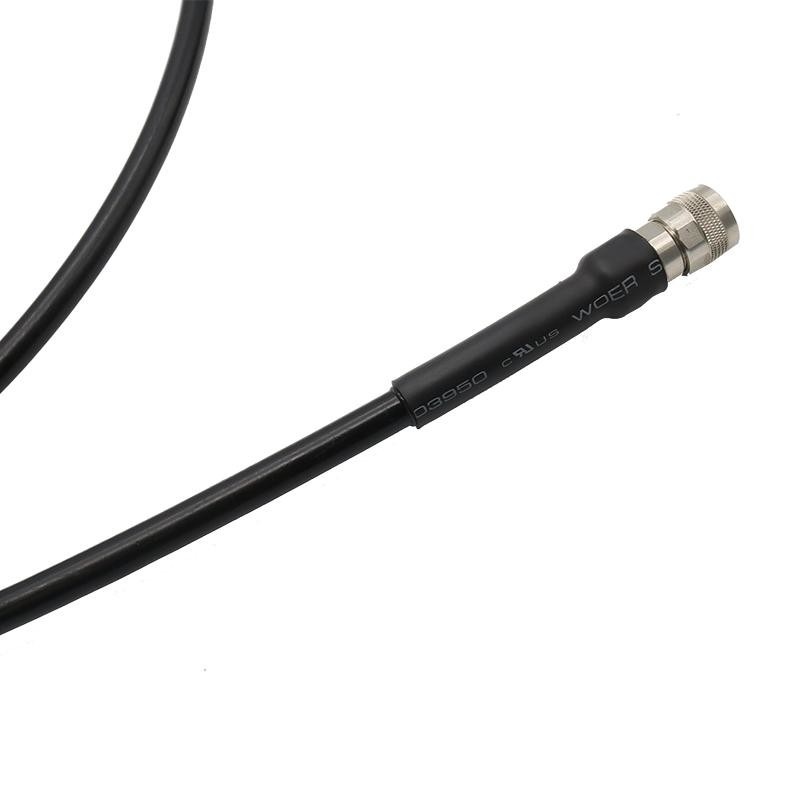

Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.

Features

• 3:1 shrink ratio

• Low longitudinal shrinkage

Demensions:

Inch	mm	Internal Diameter mm	Internal Diameter mm	Total Wall Thickness mm	Adhesive Thickness mm	Spool Length M/spool
3/32	2.4	2.4	0.8	0.80±0.30	0.40±0.20	200
1/8	3.2	3.2	1.0	0.90±0.30	0.40±0.20	200
3/16	4.8	4.8	1.6	1.05±0.30	0.40±0.20	100
1/4	6.4	6.4	2.2	1.25±0.30	0.45±0.20	100
5/16	7.9	7.9	2.7	1.35±0.30	0.50±0.20	100
3/8	9.5	9.5	3.2	1.45±0.30	0.50±0.20	50
1/2	12.7	12.7	4.2	1.65±0.30	0.50±0.20	1.22OR25M/Roll
5/8	15	15	5.2	1.80±0.30	0.55±0.30	1.22OR25M/Roll
3/4	19.1	19.1	6.3	1.95±0.30	0.60±0.30	1.22OR25M/Roll
1	25.4	25.4	8.5	2.00±0.40	0.60±0.30	1.22OR25M/Roll
1-1/4	30	30	10.2	2.15±0.40	0.65±0.30	1.22OR25M/R0II
1-1/2	39	39	13.5	2.45±0.40	0.60±0.30	1.22OR25M/Roll
2	50	50	17	2.75±0.40	0.75±0.30	1.22OR25M/Roll
5/2	64	64	21	3.05±0.40	0.80±0.30	1.22OR25M/Roll
3	75	75	25	3.05+0.40	1.0510.40	1.22OR25M/Roll
7/2	90	90	30	3.10±0.50	1.05±0.40	1.22OR25M/Roll
4	100	100	34	3.10±0.50	1.05±0.40	1.22OR25M/R0II
5	125	125	42	3.10±0.50	1.10±0.40	1.22OR25M/Roll

Technical Data

I Property	Test Method	Standard	Typical Performance I
Tensile Strength(MPa)	ASTM D2671	W0.4	11.5
Elongation(%)	ASTM D2671	M300	450
Tensile Strength after aging (MPa)	UI224 158°CX168hr	N7.3	8.5
Elongation after aging(%)	UI224 158°CX168hr	N200	350
Flammability	ASTM D2671B	Self-extinguish within 30s	Self-extinguish within 30s
Dieletric strength(kV/mm)	IEC 60243	N15	17.5
Volume resistivity(Q.cm)	IEC 60093	^1X10¹⁴	2.5X10¹⁴

Hot Melt Adhesive Property

Property	Test Method	Stantard I
Water Absorption	ASTM D570	<0.2%
Sofening Point(°C)	ASTM E28	90±5
Strength of pearing(PE)	ASTM D 1000	120N/25mm
Strength of pearing(AL)	ASTM D 1000	80N/25mm
