6mm 2X Black Dual Wall Adhesive Heat Shrink Tubing For Automotive Oil Pipe Protection

  • 6mm 2X Black Dual Wall Adhesive Heat Shrink Tubing For Automotive Oil Pipe Protection
Place of Origin China
Brand Name Long
Certification ISO
Model Number SBRS-2XQF
Minimum Order Quantity 10m
Packaging Details Roll/Carton
Delivery Time 1-8days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 300000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Easy Installation Material PE
Certificate ROHS,ISO9001 Colour Black
Shrink Ratio 2:1 Designed Oil Pipe Protection
Wall Dual Wall With Glue Or Not With Glue
Leave a Message
Product Description

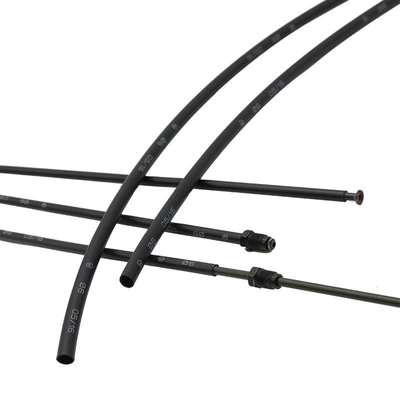

6mm 2X Black Dual Wall Adhesive Heat Shrink Tubing For Automotive Oil Pipe Protection



SBRS-(2X)QF Adhesive-lined Heat-shrinkable Tubing is specially designed for Automotive Oil-pipe Protection, providing preventive protection to break line, fuel line, hydraulic line and other metal pipeline which is subject to bending or clamping during manufacturing, installation or operation.



Features



•  Semi-rigid outer jacket for mechanical damage prevention

•  Adhesive inner layer for sealing against moisture and corrosion

•  Easy installation

•  High strength bonding, the adhesive layer is hard to be peeled

off from pipeline

•  Continuous operating temperature:-45°C-105°C

•  Fully shrink temperature:^125°C



Dimensions





Size Expanded After Recovery Standard Package
mm Internal Diameter Internal Diameter Total Wall Thickness Adhesive Thickness Spool Length
  Min(mm) Max(mm) Nom(mm) Nom(mm) IVI/
06.0 6 4.5 1.20±0.20 0.20±0.05 300
08.0 8 6.1 1.30±0.20 0.20±0.05 200
011.0 11 7.1 1.30±0.20 0.20±0.05 200
013.0 13 9.8 1.30±0.20 0.20±0.05 100
015.0 15 11.5 1.30±0.20 0.20±0.05 100



Technical Data



I Property Test Method Standard Performance I
Tensile Strength(MPa) ASTM D2671 512
Elongation(%) ASTM D2671 N300
Longitudinal change ASTM D2671 -10%~+10%
Tensile strength after aging(MPa) 120°CX24h S12
Non-deformability 140°C, 10min,2kg/cm2 ,loaded 5min <60%
Low-temperature impact ASTM D 746 -35°C,no cracking
Impact resistance to fall Room temperature&-40°CX30min, impacted by a weight of 200g, 0.5m high no cracking
Stress-crack resistance ASTM D 1693 no cracking
Chemical reagents resistance: 0.1 mol/L H2SO4l0.1 mol/L NaOH, Brake fluid, Engine oil, Gasoline No abnormal in appearance 20°C,120hr



Adhesive



Property Test Method Standard I
Water Absorption ASTM D570 <0.5%
Sofening Point(°C) ASTM E28 105+5
Strength of pearing(AL) ASTM D 1000 120N/25mm
Strength of pearing(PE) ASTM D 1000 80N/25mm

6mm 2X Black Dual Wall Adhesive Heat Shrink Tubing For Automotive Oil Pipe Protection 0
