12mm Dual Wall Heat Shrink Tube 4mm , Polylefin Adhesive Shrink Wrap Tubing

12mm Dual Wall Heat Shrink Tube 4mm , Polylefin Adhesive Shrink Wrap Tubing

12mm Dual Wall Heat Shrink Tube 4mm , Polylefin Adhesive Shrink Wrap Tubing

Brand Name:	Long
Model Number:	SBRS-(4X)GR
MOQ:	10m
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	400000meters per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Material:

PE

Colour:

Black

Shrink Ratio:

4:1

Feature:

Seal&environmentally

Fully Shrink Temperature:

Over 125

Wall:

Dual Wall

Certificate:

ROHS

Test Method:

ASTM D570

Packaging Details:

Roll/Carton

Supply Ability:

400000meters per day

Highlight:

4mm Dual Wall Heat Shrink Tube

,

12mm Dual Wall Heat Shrink Tube

,

Polylefin Adhesive Shrink Wrap Tubing

Product Description

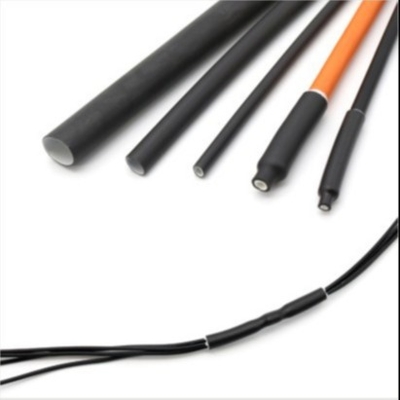

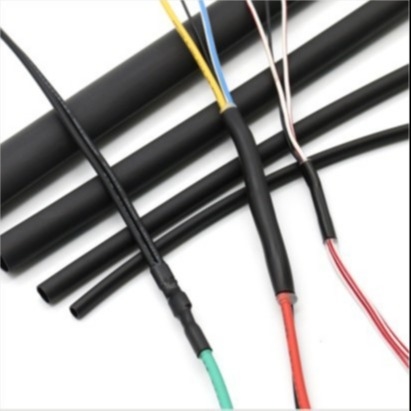

2/13 4mm Black High Shrink Ration Dual Wall Adhesive Cross Polylefin Tubing

Adhesive Semi-rigid, dual wall heat shrink tubing designed to seal&

environmentally protect splice in the most.

Features

• 4:1 shrink ratio

• Super sealing against water, moisture or other contaminates

• Continuous operating temperature:-45°C-125°C

• Fully shrink Temperature:^125°C

• Shrink ratio: 4:1

Adhesive

Property	Test Method	Standard I
Water Absorption	ASTM D570	<0.2%
Sofening Point(°C)	ASTM E28	90±5
Strength of pearing(PE)	ASTM D 1000	120N/25mm

Demension

Size		Expanded	After Recovery			Standard Package
Inch	mm	Internal Diameter	Internal Diameter	Total Wall Thickness	Adhesive Thickness	Spool Length
		Min(mm)	Max(mm)	Nom(mm)	Nom(mm)	IVI/
2/13	4	4.0	0.95	1.40±0.30	0.60±0.20	200
1/4	6	6.0	1.27	1.70±0.30	0.80±0.20	100
5/16	8	8.0	1.65	2.00±0.30	0.95±0.20	100
	10	10.0	2.00	2.30±0.40	1.10±0.20	1.22OR25M/Roll
1/2	12	12.0	2.41	2.45±0.40	1.20±0.20	1.22OR25M/Roll
3/4	18	18.0	4.45	2.60±0.40	1.34±0.30	1.22OR25M/Roll

I Property	Test Method	Standard	Typical Performance I
Tensile Strength(MPa)	ASTM D2671	N10.4	11.5
Elongation(%)	ASTM D2671	>300	450
Tensile Strength after aging (MPa)	UL224 158°CX168hr	"7.3	8.5
Elongation after aging(%)	UI224 158°CX168hr	N200	350
Dieletric strength(kV/mm)	IEC 60243	N15	17.5
Volume resistivity(Q.cm)	IEC 60093	^1X10¹⁴	2.5X10¹⁴

12mm Dual Wall Heat Shrink Tube 4mm , Polylefin Adhesive Shrink Wrap Tubing 0
