Polyolefin 4mm Heat Shrink Tubing Black , 4x Heat Shrink Tubing Adhesive Waterproof

Brand Name:	Long
Model Number:	SBRS-(4X)GRF
MOQ:	10m
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	400000meters per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Material:

Color:

Black

Shrink Ratio:

4:1

Feature:

Economical Way To Environmentally

Highly Resistance To:

Common Automotive Fluids And Solvents

Semi-rigid And Mechanically Tough:

Outer Jacket Provides Added Strain Relief And Excellent Abrasion Protection

Thick Adhesive Liner Forms:

An Effective Barrier Against Fluids And Moisture Penetration

Continuous Operating Temperature:

-45°C-125°C

Packaging Details:

Roll/Carton

Supply Ability:

400000meters per day

Highlight:

Polyolefin 4mm heat shrink tubing

black 4mm heat shrink tubing

4x heat shrink tubing adhesive waterproof

Product Description

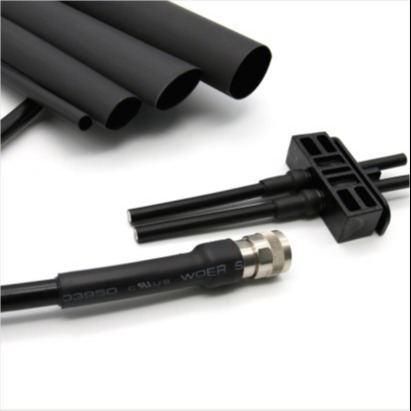

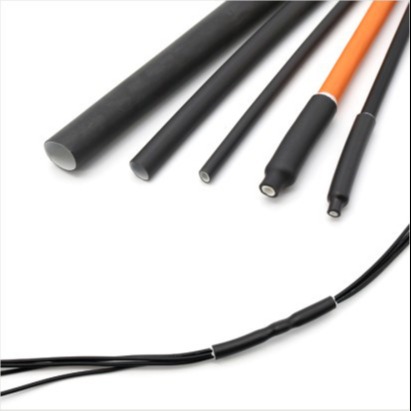

2/13 4mm 4X Black Highly Flame Retardant Dual Wall Heat Shrink Polyolefin Tubing

Highly flame retardant,semi-rigid,cross-linked dual wall heat-shrink tubing designed for splice sealing and fuse link protection.

Features

• 3:1&4:1 shrink ratio to cover varying splice configurations and substrate profiles

• Jacket and adhesive are exceptionally flame retardant

• Economical way to environmentally seal and protect automotive

fuse-links, splice and terminals

• Highly resistance to common automotive fluids and solvents

• Semi-rigid and mechanically tough outer jacket provides added

s train relief and excellent abrasion protection

• Thick adhesive liner forms an effective barrier

against fluids and moisture penetration

• Continuous operating temperature:-45°C-125°C

• Fully shrink Temperature:^125°C

Dimensions

Size		Expanded	After Recovery
		Internal	Internal	Total Wall	Adhesive	Standard Package
Inch	mm	Diameter	Diameter	Thickness	Thickness
		Min(mm)	Max(mm)	Nom(mm)	Nom(mm)
2/13	4	4.0	0.95	1.40±0.30	0.60±0.20	1.22
1/4	6	6.0	1.27	1.70±0.30	0.80±0.20	1.22
5/16	8	8.0	1.65	2.00±0.30	0.95±0.20	1.22
	10	10.0	2.00	2.30±0.40	1.10±0.20	1.22
1/2	12	12.0	2.41	2.45±0.40	1.20±0.20	1.22
3/4	18	18.0	4.45	2.60±0.40	1.34±0.30	1.22

Technical Data

I Property	Test Method	Standard	Typical Performance I
Tensile Strength(MPa)	ASTM D2671	210.4	11.5
Elongation(%)	ASTM D2671	>300	450
Tensile Strength after aging (MPa)	UL224 158°CX168hr	>7.3	8.5
Elongation after aging(%)	UI224 158°CX168hr	>200	350
Dieletric strength(kV/mm)	IEC 60243	>15	17.5
Volume resistivity(Q.cm)	IEC 60093	>1X10¹⁴	2.5X10¹⁴

Adhesive

Property	Test Method	Standard I
Water Absorption	ASTM D570	<0.2%
Sofening Point(°C)	ASTM E28	90±5
Strength of pearing(PE)	ASTM D 1000	120N/25mm
Strength of pearing(AL)	ASTM D 1000	80N/25mm
