Dual Wall Heat Shrink Tube
Created with Pixso.

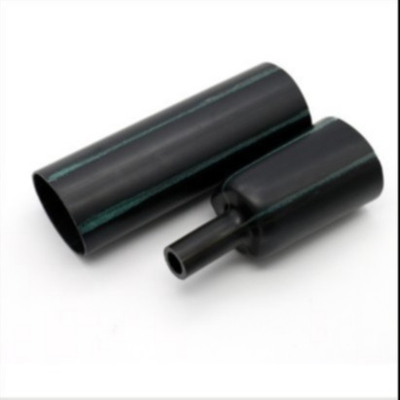

3.8-10.2mm Dual Wall Heat Shrink Tube 3 To 1 Medium Wall

3.8-10.2mm Dual Wall Heat Shrink Tube 3 To 1 Medium Wall

Brand Name: Long
Model Number: 10.2-3.8mm
MOQ: 1m
Price: 0.03
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 400000meters per day
Detail Information
Place of Origin:
China
Certification:
ISO
Shrink Ratio:
3: 1 Shrink Ratio
Retardant:
Flame Retardant
Excellent Resistance:
To Weathering , Moisture Contamination And Adverse Environmental Conditions
Lines:
Heat Indicating Lines
Adhesive Liner Provides:
Complete Environmental Protection And Insulation
Resists Common:
Fluids And Solvents
Continuous Operating Temperature:
-45°C-110°C
Fully Shrink Temperature:
125°C
Packaging Details:
Roll/Carton
Supply Ability:
400000meters per day
Highlight:

3.8mm Dual Wall Heat Shrink Tube

,

10.2mm Dual Wall Heat Shrink Tube

,

3 to 1 medium wall heat shrink

Product Description

Medium Wall Adhesive Lined Heat Variable Heat Shrink Tubing





Heat shrinkable tubing and adhesive liner combination that established

the CATV industry standard for splice and connector protection.



Features





•  3: 1 shrink ratio

•  Flame retardant

•  Excellent resistance to weathering , moisture contamination and adverse environmental conditions

•  Heat indicating lines

•  Adhesive liner provides complete environmental protection and insulation

•  Resists common fluids and solvents

•  Continuous operating temperature:-45°C-110q

•  Fully shrink temperature: 125°C





Property Test Method Standard I
Water Absorption ASTM D570 <0.2%
Sofening Point(°C) ASTM E28 85
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm



Dimensions





Size

mm

Expanded After Recovery Standard Package M/pc
  Internal Diameter mm Internal Diameter mm Jacket Thickness mm

Adhesive

Thickness mm

Total Wall

Thickness mm


10.2/3.8 10.2 3.8 1.40±0.20 0.50±0.10 1.90±0.25 1.22
19.0/5.6 19.0 5.6 1.80±0.20 0.60±0.15 2.40±0.30 1.22
28.0/6.0 28.0 6.0 2.40±0.30 0.95±0.20 3.30±0.35 1.22
33.0/8.0 33.0 8.0 2.50±0.30 0.80±0.15 3.30±0.35 1.22
38.1/12.0 38.1 12.0 2.40±0.30 0.80±0.15 3.30±0.35 1.22
43.2/12.7 43.2 12.7 2.40±0.30 0.80±0.15 3.30±0.35 1.22
55.0/16.0 55.0 16.0 2.40±0.30 0.80±0.15 3.30±0.35 1.22
70.0/25.4 70.0 25.4 2.80±0.30 0.60±0.15 3.40±0.40 1.22





Technical Data


I Property Test Method Standard Typical Performance I
Tensile Strength(MPa) ASTM D2671 ^10.4 11.5
Elongation(%) ASTM D2671 N300 450
Tensile Strength after aging (MPa) UL224 158°CX168hr >7.3 8.5
Elongation after aging(%) UL224 158°CX168hr >200 350
Dieletric strength(kV/mm) IEC 60243   17.5
Volume resistivity(Q.cm) IEC 60093 >1X1014 2.5X1014



3.8-10.2mm Dual Wall Heat Shrink Tube 3 To 1 Medium Wall 0



FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
