Dual Wall Heat Shrink Tube
Created with Pixso.

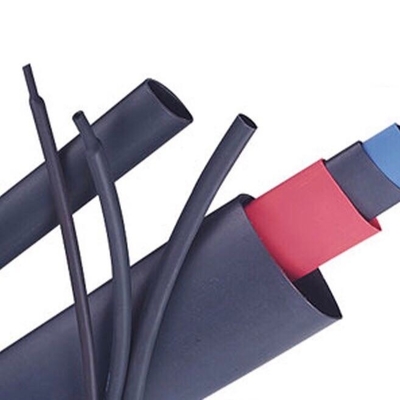

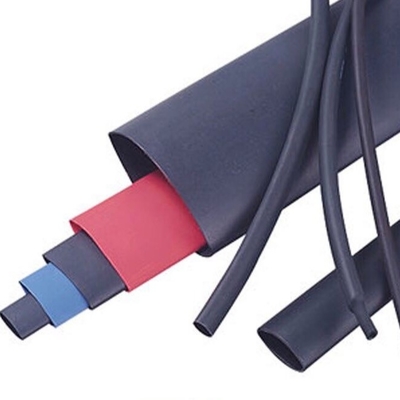

8.0mm Insulated Flame Retardant Heat Shrinkable Tube Two Wall 52mm 4 To 1

8.0mm Insulated Flame Retardant Heat Shrinkable Tube Two Wall 52mm 4 To 1

8.0mm Insulated Flame Retardant Heat Shrinkable Tube Two Wall 52mm 4 To 1

Brand Name: Long
Model Number: 8.0mm
MOQ: 1m
Price: 0.03
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 400000meters per day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO
Shrink Ratio:
4:1
Shrinkage:
Low Longitudinal Shrinkage
Superior Sealing Against:
Superior Sealing Against Water, Moisture Or Other Contaminants
Ideal For:
Ideal For Connector Sealing Covering Large Diameter Differences
Inner:
Inner Adhesive Bonds To Plastics, Steel And Polyethylene
Inner Adhesive Bonds:
To Plastics, Steel And Polyethylene
Continuous Operating Temperature:
-45℃- 125℃
Shrink Temperature:
125℃
Packaging Details:
Roll/Carton
Supply Ability:
400000meters per day
Highlight:

8.0mm insulated flame retardant heat shrinkable tube

,

Two Wall insulated flame retardant heat shrinkable tube

,

52mm 4 to 1 heat shrink tubing

Product Description

8.0mm 4X Dual Wall Adhesive Heat Shrink Tubing Waterproof Insulating Tube



Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.





Features



●  4:1 shrink ratio



●  Low longitudinal shrinkage



●  Superior sealing against water, moisture or other contaminants



●  Ideal for connector sealing covering large diameter differences



●  Inner adhesive bonds to plastics, steel and polyethylene



●  Flame retardant( out jacket only)



●  Continuous operating temperature:-45℃- 125℃



●  Shrink Temperature:125℃



Dimensions





Size Expanded After Recovery Standard Package
Inch



8.0mm Insulated Flame Retardant Heat Shrinkable Tube Two Wall 52mm 4 To 1 0

 Internal Diameter mm Internal Diameter mm Total Wall Thickness mm Adhesive Thickness mm Spool Length M/spool
5/32 4.0 4,0 1.0 1.00±0.15 0.40±0.15 200
1/4 6.0 6,0 1.5 1.10±0.15 0.40±0.15 100
5/16 8.0 8,0 2.0 1.50±0.15 0.50±0.15 50
1/ 2 12.0 12,0 3.0 1.70±0.15 0.50±0.15 1.22 OR 25M/Roll
5/8 16.0 16,0 4.0 2.00±0.15 0.60±0.15 1.22 OR 25M/Roll
25/32 20.0 20,0 5.0 2.30±0.25 0.60±0.15 1.22 OR 25M/Roll
1 24.0 24,0 6.0 2.60±0.25 0.60±0.15 1.22 OR 25M/Roll
1-1/4 32.0 32,0 8.0 3.00±0.30 0.70±0.15 1.22 OR 25M/Roll
1-1/2 40.0 40,0 10.0 3.00±0.30 0.70±0.15 1.22 OR 25M/Roll
2 52.0 52,0 13.0 3.30±0.30 0.70±0.15 1.22 OR 25M/Roll



Technical Data
Property Test Method Stantard Typical Performance
Tensile Strengtn(MPa) ASTM D2671 ≥10.4 11.5
Elongation(%) ASTM D2671 ≥300 450
Tensile Strengtn after aging (MPa) UL224 158℃X168hr ≥7.3 8.5
Elongation after aging(%) UL224 158℃X168hr ≥200 350
Flammability ASTM D2671B   Self-extinguish within 30s
Dieletric strength(kv/mm) IEC243 ≥15 17.5
Volume resistivity(Ω.cm) ASTM D876 ≥1X1014 2.5X1014



Hot Melt Adhesive Property





Property Test Method Stantard
Water Absorption ASTM D570 ≤0.2%
Sofening Point(℃) ASTM E28 90±5
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm



8.0mm Insulated Flame Retardant Heat Shrinkable Tube Two Wall 52mm 4 To 1 1
