Single Wall Heat Shrink Tubing
Created with Pixso.

18mm Flexible Polyolefin Heat Shrink Tubing Sleeve 110C 0.45mm Skidproof

18mm Flexible Polyolefin Heat Shrink Tubing Sleeve 110C 0.45mm Skidproof

Brand Name: Long
Model Number: 18mm-2X
MOQ: 1m
Price: 0.03
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 400000meters per day
Detail Information
Place of Origin:
China
Certification:
ISO
Size:
18mm
Performance:
Good Abrasion Resistant And Anti-skid Performance
Flexibility:
High Flexibility
Installation:
Quick Installation
Continuous Operating Temperature:
-55°C-125°C
Shrink Temperature: Started At:
70°C, Full Recovery At 110°C
Standard Color:
Black, Red, Yellow, Green, Blue
Wall Thickness:
0.45mm
Packaging Details:
Roll/Carton
Supply Ability:
400000meters per day
Highlight:

18mm Flexible Polyolefin Heat Shrink Tubing

,

110C Flexible Polyolefin Heat Shrink Tubing

,

0.45mm heat shrink tube sleeve

Product Description

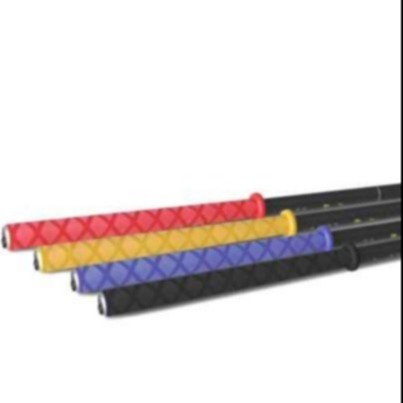

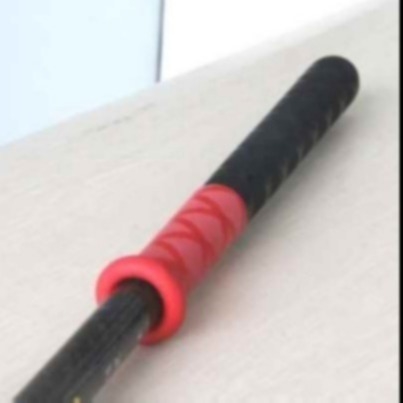

Skidproof Heat ShrinkTubing Polyolefin Tubing With Skidproof Figured Surface



Skidproof Heat ShrinkTubing Polyolefin tubing with skidproof figured surface, used for various fishing tackles.





sport fittings, and equipments and commodities with hand device.







Features



1.Full recovery temperature:120ºC
(For thin wall HST full recovery temperature:110ºC)

2.Shrink temperature: Min. 70ºC

3. Operating temperature: -55ºC~+125ºC

4. Shrink ratio: 2:1

5.Breakdown voltage:300V, 600V.

6. Flame-retardant, Sun's UV resistant

7.Standard color: Black, Red, Yellow, White,Blue, Green, Clear, Gray, Brown

8. Shrinking tool: Heat Gun or Hot air tools

9.Certificate: RoHS , UL



Application:


1. Electrical insulation

2.Lightweight harness

3.Cable management.

4. Mechanical protection



Dimensions





Size Expanded After Recovery Standard Package M/pc
mm Internal Diameter mm Wall Thickness mm Internal Diameter mm

Wall

Thickness mm


15 15 0.45±0.15 8.0 0.85±0.15 1.0
18 18 0.45±0.15 10.0 0.85±0.15 1.0
20 20 0.50±0.15 11.0 0.90±0.15 1.0,1.6
22 22 0.50±0.15 12.5 0.90±0.15 1.0,1.6
25 25 0.50±0.15 14.5 1.00±0.15 1.0,1.6
28 28 0.50±0.15 15.5 1.00±0.15 1.0,1.6
30 30 0.60±0.15 17.5 1.20±0.15 1.0,1.6
35 35 0.60±0.15 20.0 1.20±0.15 1.0,1.6
40 40 0.60±0.15 23.0 1.20±0.15 1.0,1.6
45 45 0.65±0.15 25.0 1.25±0.15 1.0,1.6
50 50 0.65±0.15 28.0 1.25±0.15 1.0,1.6
