19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube

  • 19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube
  • 19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube
  • 19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube
  • 19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube
Place of Origin China
Brand Name Long
Certification ISO
Model Number 19.1mm
Minimum Order Quantity 1m
Price 0.05
Packaging Details Roll/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Red Material PE
Shrink Ratio 3:1 Shrinkage Low Longitudinal Shrinkage
Flame Retardant Flame Retardant (out Jacket Only) Super Sealing Against Super Sealing Against Water ,oisture Or Other Contaminates
Continuous Operating Temperature -45-125°C Fully Shrink Temperature Over 125°C
Highlight

19.1mm Dual Wall Adhesive Heat Shrink Tubing

,

red Dual Wall Adhesive Heat Shrink Tubing

,

PE electrical shrinkable tube
Leave a Message
Product Description

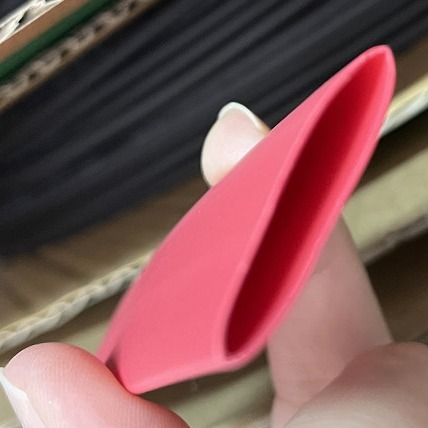

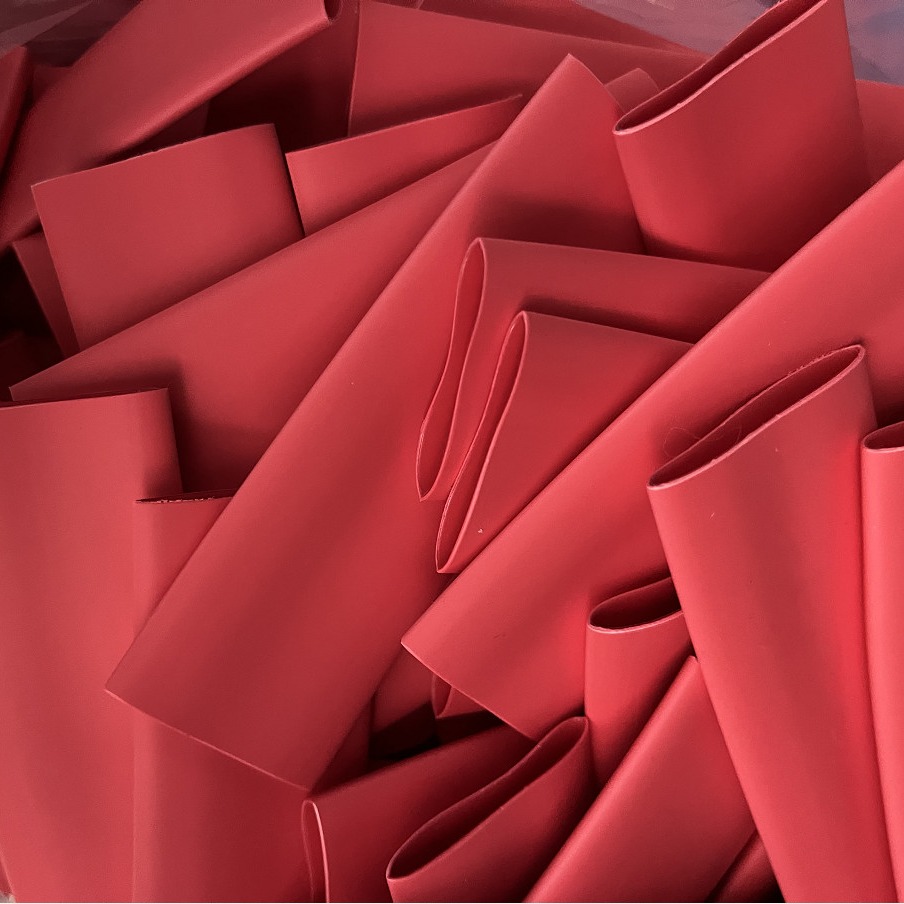

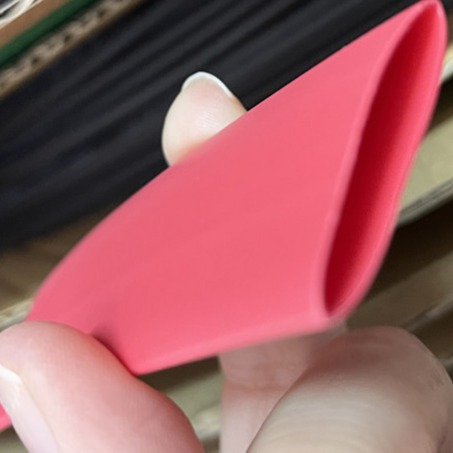

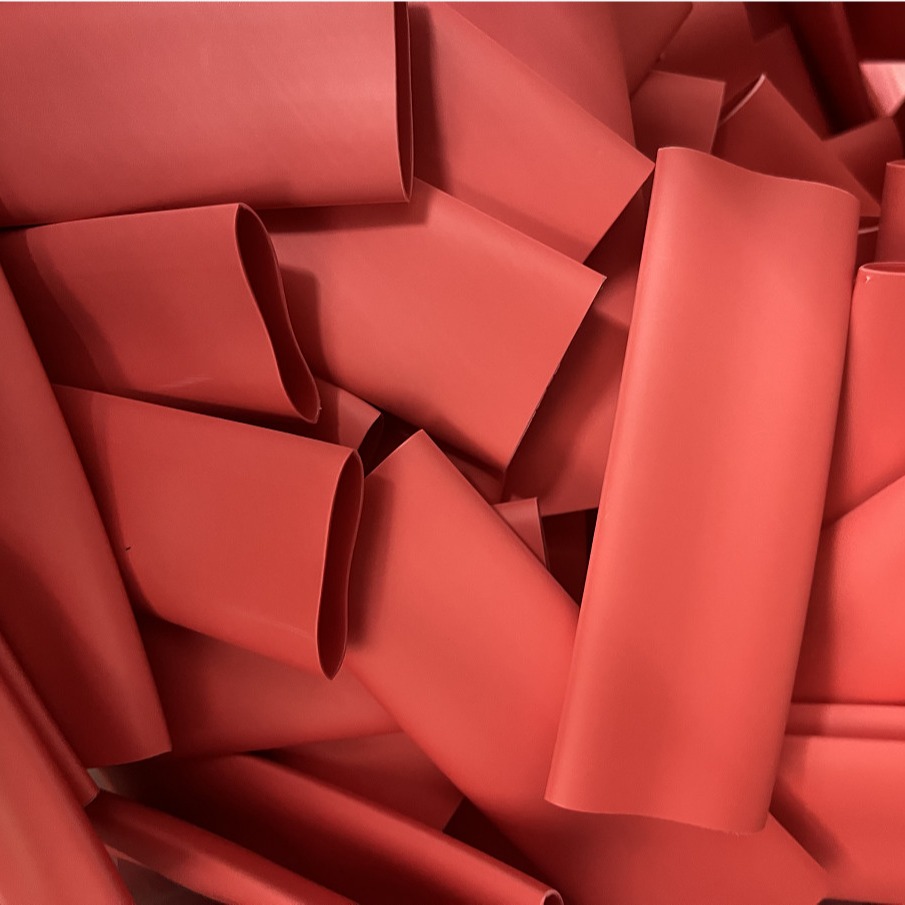

19.1mm Red Dual Wall Heat Shrink Tubing With Adhesive Shrink Ratio 3X

Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing . Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.

Features


•  3:1 shrink ratio



•  Low longitudinal shrinkage




•  Flame retardant (out jacket only)

•  Super sealing against water ,oisture or other contaminates

•  Continuous operating temperature: -45-125°C

•  Fully shrink temperature: over 125°C


Dimensions



InchmmInternal Diameter mmInternal Diameter mmTotal Wall Thickness mmAdhesive Thickness mmSpool Length M/spool
3/322.42.40.80.80±0.300.40±0.20200
1/83.23.21.00.90±0.300.40±0.20200
3/164.84.81.61.05±0.300.40±0.20100
1/46.46.42.21.25±0.300.45±0.20100
5/167.97.92.71.35±0.300.50±0.20100
3/89.59.53.21.45±0.300.50±0.2050
1/212.712.74.21.65±0.300.50±0.201.22OR25M/Roll
5/815155.21.80±0.300.55±0.301.22OR25M/Roll
3/419.119.16.31.95±0.300.60±0.301.22OR25M/Roll
125.425.48.52.00±0.400.60±0.301.22OR25M/Roll
1-1/4303010.22.15±0.400.65±0.301.22OR25M/R0II
1-1/2393913.52.45±0.400.60±0.301.22OR25M/Roll
25050172.75±0.400.75±0.301.22OR25M/Roll
5/26464213.05±0.400.80±0.301.22OR25M/Roll
37575253.05+0.401.0510.401.22OR25M/Roll
7/29090303.10±0.501.05±0.401.22OR25M/Roll
4100100343.10±0.501.05±0.401.22OR25M/R0II
5125125423.10±0.501.10±0.401.22OR25M/Roll



Technical Data



I PropertyTest MethodStandardTypical Performance I
Tensile Strength(MPa)ASTM D2671W0.411.5
Elongation(%)ASTM D2671M300450
Tensile Strength after aging (MPa)UI224 158°CX168hrN7.38.5
Elongation after aging(%)UI224 158°CX168hrN200350
FlammabilityASTM D2671BSelf-extinguish within 30sSelf-extinguish within 30s
Dieletric strength(kV/mm)IEC 60243N1517.5
Volume resistivity(Q.cm)IEC 60093^1X10142.5X1014




Hot Melt Adhesive Property





PropertyTest MethodStantard I
Water AbsorptionASTM D570<0.2%
Sofening Point(°C)ASTM E2890±5
Strength of pearing(PE)ASTM D 1000120N/25mm
Strength of pearing(AL)ASTM D 100080N/25mm


19.1mm Dual Wall Adhesive Heat Shrink Tubing Red PE Electrical Shrinkable Tube 0
