25mm Clear Shrink Tubing 10 Degree , 2" Flame Retardant Heat Shrink Tubing

Name: 25mm Clear Shrink Tubing 10 Degree , 2" Flame Retardant Heat Shrink Tubing
Brand: Changzhou Longchuang Insulating Material Co., Ltd.
SKU: 25mm
Price: 0.03 USD
Availability: InStock

Brand Name:	Long
Model Number:	25mm
MOQ:	1m
Price:	0.03
Payment Terms:	T/T, D/P, D/A, L/C, Western Union,
Supply Ability:	400000meters per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Material:

Color:

Clear

Size:

25mm

Wall:

Singel Wall Without Glue

Feature:

Flexible

Continuous Operating Temperature:

10°C

Fully Shrink Temperature:

^125°C

Compliant:

RoHS Compliant

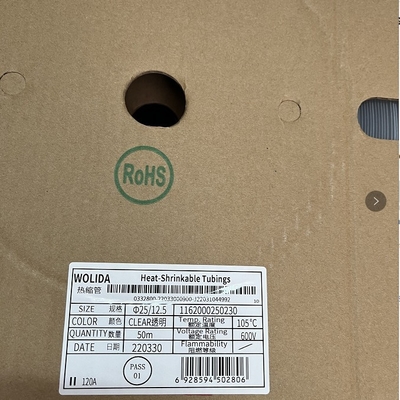

Packaging Details:

Roll/Carton

Supply Ability:

400000meters per day

Highlight:

10 degree clear shrink tubings

10 degree clear shrink tubings long

long 10 degree clear shrink tubing

Product Description

Clear 25mm Flexible Heat Srhink Tubing Flame Retardant ROHS Compliant

Universal heat shrink tubing with excellent physical and mechanica properties.

Features

• Flexible

• Flame retardant

• Continuous operating temperature:-55°C~125°C

• Fully shrink temperature:^125°C

• RoHS compliant

Dimensions

Size		As Supplied	After Recovery		Standard Package
Inch	mm	Internal Diameter mm	Internal Diameter mm	Wall Thickness mm	Spool Lenqth M/spooF
3/64	0.8	1.110.2	0.50	0.22	200
1/16	1.0	1.5±0.2	0.65	0.28	200
	1.5	2.0±0.2	0.85	0.32	200
3/32	2.0	2.5±0.2	1.00	0.35	200
	2.5	3.0±0.2	1.30	0.38	200
1/8	3.0	3.5±0.2	1.50	0.40	200
	3.5	4.0+0.2	1.80	0.42	200
	4.0	4.5±0.2	2.00	0.45	200
3/16	4.5	5.0±0.2	2.30	0.50	200
	5.0	5.5±0.2	2.5	0.55	100
1/4	6.0	6.5±0.2	3.0	0.55	100
5/16	7.0	7.5±0.3	3.5	0.55	100
	8.0	8.5±0.3	4.0	0.60	100
3/8	9.0	9.5±0.3	4.5	0.60	100
	10.0	10.5±0.3	5.0	0.60	100
	11.0	11.5±0.3	5.5	0.60	100
1/2	12.0	12.5+0.3	6.0	0.60	100
	13.0	13.5±0.3	6.5	0.65	100
	14.0	14.510.3	7.0	0.65	100
5/8	15.0	15.510.4	7.5	0.70	100
	16.0	16.510.4	8.0	0.70	100
	17.0	17.510.4	8.5	0.70	100
3/4	18.0	19.010.5	9.0	0.80	100
	20.0	21.010.5	10.0	0.80	100
	22.0	23.0±0.5	11.0	0.80	100
1	25.0	26.0±0.5	12.5	0.90	50
	28.0	29.010.5	14.0	0.90	50
1-1/4	30.0	31.5±1.0	15.0	0.95	50
1-1/2	35.0	36.5±1.0	17.5	1.00	50
	40.0	41.511.0	20.0	1.00	50
	45.0	46.511.0	22.5	1.00	25
2	50.0	N50	25.0	1.00	25
	60.0	N60	31.0	1.30	25
	70.0	^70	36.0	1.30	25
3	80.0	N80	41.0	1.46	25
	90.0	"90	46.0	1.46	25
4	100.0	3s100	51.0	1.46	25
5	120.0	N120	61	1.56	25
6	150.0	N150	76	1.56	25
7	180.0	>180	91	1.56	25

Technical Data

I Property I	Test Method I	Typical Performance I
Tensile strength(MPa)	ASTM D2671	5=10.4
Ultimate elongation(%)	ASTM D2671	^200
Tensile strength after heat aged(Mpa)	158°CX168h	>7.3
Ultimate elongation after heat aged (%)	158°CX168h	>100
Longitudinal change(%)	ASTM D 2671	-5%~+5%
Flammability	ASTM D 2671 C method	VW-1
Voltage withstand	UL 224, 2500V, 60s	No breakdown
Dielectric strength (kV/mm)	ASTM D 149	"15
Volume resistivity (Q cm)	ASTM D 876
