3x Dual Wall Heat Shrink Tube Halogen Free 12.7mm Red Tubing

  • 3x Dual Wall Heat Shrink Tube Halogen Free 12.7mm Red Tubing
  • 3x Dual Wall Heat Shrink Tube Halogen Free 12.7mm Red Tubing
  • 3x Dual Wall Heat Shrink Tube Halogen Free 12.7mm Red Tubing
Place of Origin China
Brand Name Long
Certification ISO
Model Number 12.7mm
Minimum Order Quantity 1BOX
Packaging Details Roll/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Red And Black Material PE
Shrink Ratio 3:1 Halogen Halogen Free
Super Sealing Against Water, Moisture Or Other Contaminates Continuous Operating Temperature -45°C-125°C
Fully Shrink Temperature ^125°C Compliant Sony Compliant
Highlight

3x Dual Wall Heat Shrink Tube

,

Halogen free Dual Wall Heat Shrink Tube

,

12.7mm red heat shrink tubing
Leave a Message
Product Description

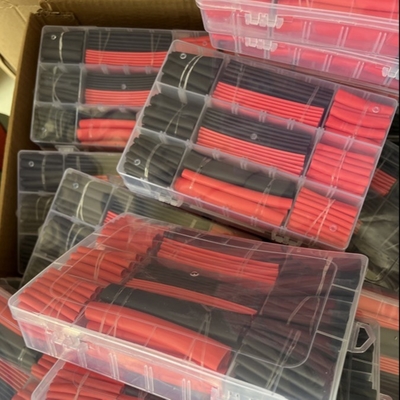

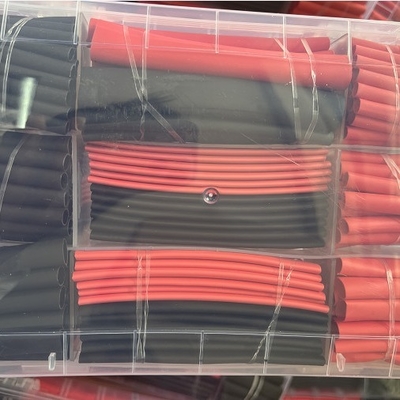

Box Packing Dual Wall Heat Shrink Tubing With Adhesive Shrink Ratio 3X





Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.



Features





•  3:1 shrink ratio

•  Halogen free

•  Super sealing against water, moisture or other contaminates

•  Continuous operating temperature:-45°C-125°C

•  Fully shrink Temperature:^125°C

•  Shrink ratio: 3:1

•  Sony compliant



Dimensions



Size Expanded After Recovery Standard Package
Inch mm Internal Diameter mm Internal Diameter mm Total Wall Thickness mm Adhesive Thickness mm Spool Length M/spool
3/32 2.4 2,4 0.8 0.85±0.15 0.40±0.10 200
1/8 3.2 3,2 1.0 0.95±0.15 0.40±0.10 200
3/16 4.8 4,8 1.6 1.10±0.15 0.40±0.10 100
1/4 6.4 6,4 2.2 1.20±0.15 0.45±0.12 100
5/16 7.9 7,9 2.7 1.35±0.15 0.50±0.12 100
3/8 9.5 9,5 3.2 1.45±0.20 0.50±0.12 50
1/2 12.7 12,7 4.2 1.70±0.20 0.50±0.12 1.22OR25M/R0II
5/8 15 15 5.2 1.80±0.20 0.55±0.15 1.22OR25M/Roll
3/4 19.1 19,1 6.3 2.00±0.20 0.55±0.15 1.22OR25M/Roll
1 25.4 25,4 8.5 2.10±0.25 0.55±0.15 1.22OR25M/R0II
1-1/4 30 30 10.2 2.20±0.25 0.60±0.15 1.22 OR25M/Roll
1-1/2 39 39 13.5 2.40±0.25 0.60±0.15 1.22OR25M/Roll
2 50 50 17 2.70±0.25 0.70±0.15 1.22OR25M/R0II
5/2 64 64 21 3.00±0.30 0.70±0.15 1.22OR25M/Roll
3 75 75 25 3.00±0.30 1.00±0.20 1.22OR25M/Roll
7/2 90 90 30 3.00±0.30 1.00±0.20 1.22OR25M/R0II
4 100 100 34 3.00±0.30 1.00±0.20 1.22OR25M/Roll
5 125 125 42 3.00±0.30 1.00±0.20 1.22OR25M/Roll





Technical Data





I Property Test Method Standard I
Tensile Strength(MPa) ASTM D2671 >10.4
Elongation(%) ASTM D2671 >300
Tensile Strength after aging (MPa) UI224 158°CX168hr N7.3
Elongation after aging(%) UI224 158°CX168hr 3200
Flammability ASTM D2671B Self-extinguish within 30s
Dieletric strength(kV/mm) IEC 60243 >15
Volume resistivity(Q.cm) IEC 60093 ^1X1014





Adhesive





Property Test Method Standard I
Water Absorption ASTM D570 <0.5
Sofening Point(°C) ASTM E28 90±5
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm
