Single Wall Heat Shrink Tubing
Created with Pixso.

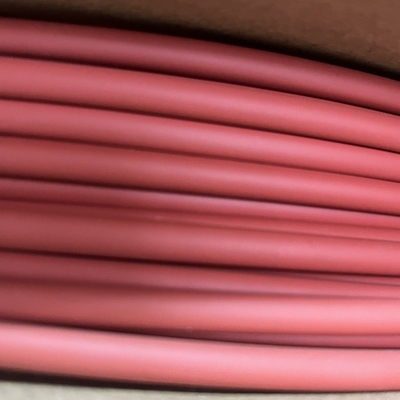

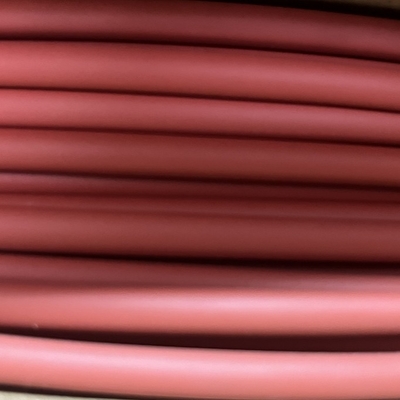

3/8 Inch Red Heat Shrink Tubing 4.5mm , Single Wall Heat Shrink Sleeve

3/8 Inch Red Heat Shrink Tubing 4.5mm , Single Wall Heat Shrink Sleeve

Brand Name: Long
Model Number: 4.5mm
MOQ: 1m
Price: 0.03
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 400000meters per day
Detail Information
Place of Origin:
China
Certification:
ISO
Size:
4.5
Color:
Red
Halogen:
Halogen Free
Flame:
Flame Retardant
If Burning:
Low Smoke Generation If Burning
Operating:
Continuous Operating
Temperature:
105°C
Fully Shrink Temperature:
110°C
Packaging Details:
Roll/Carton
Supply Ability:
400000meters per day
Highlight:

3/8 Inch Red Heat Shrink Tubing

,

4.5mm Red Heat Shrink Tubing

,

single wall heat shrink sleeve

Product Description

4.5mm Red Singel Wall Halogen Free Flexible Heat Shrink Tubing​





Ultra thin wall halogen free.flexible without adhesive and can be used easily.

High quality Heat shrink tubing without adhesive and with low moq short lead time from China manufacture.





Features



Thin wall



Halogen free



Flame retardant well



low smoke generation if burning



Continuous operating



Temperature:-55°C to 125°C



Fully shrink temperature: 109°C



Dimensions





Size As Supplied After Recovery Standard Package
Inch mm Internal Diameter mm Internal Diameter mm Wall Thickness mm Spool Length M/spooF
1/16 1.0 1.4±0.2 0.65 0.20 200
  1.5 1.9+0.2 0.85 0.20 200
3/32 2.0 2.4±0.2 1.00 0.22 200
  2.5 2.9±0.2 1.30 0.25 200
1/8 3.0 3.4±0.2 1.50 0.28 200
  3.5 3.9±0.2 1.80 0.28 200
  4.0 4.410.2 2.00 0.30 200
3/16 4.5 4.9±0.2 2.30 0.30 100
  5.0 5.5±0.2 2.5 0.32 100
1/4 6.0 6.5±0.2 3.0 0.32 100
5/16 7.0 7.5±0.3 3.5 0.32 100
  8.0 8.5±0.3 4.0 0.32 100
3/8 9.0 9.5+0.3 4.5 0.35 100
  10.0 10.5±0.3 5.0 0.35 100
  11.0 11.5±0.3 5.5 0.40 100
1/2 12.0 12.5±0.3 6.0 0.40 100
  13.0 13.5±0.3 6.5 0.40 100
  14.0 14.5±0.3 7.0 0.40 100
5/8 15.0 15.5±0.4 7.5 0.40 100
  16.0 16.5±0.4 8.0 0.40 100
  17.0 17.5±0.4 8.5 0.40 100
3/4 18.0 18.5±0.4 9.0 0.42 100
  20.0 20.5±0.5 10.0 0.45 100
  22.0 22.5±0.5 11.0 0.45 100
1 25.0 25.5±0.5 12.5 0.45 50





Technical Data



I Property I Test Method Typical Performance I
Tensile strength(MPa) ASTM D 2671 >10.4
Ultimate elongation(%) ASTM D 2671 >200
Tensile strength after heat aged (Mpa) 158°CX168h N7.3
Ultimate elongation after heat aged (%) 158°CX168h ^100
Longitudinal change(%) ASTM D 2671 -5%~+5%
Flammability ASTM D 2671 C method VW-1
Dielectric strength (kV/mm) ASTM D 149 >15
Volume resistivity (Q-cm) ASTM D 876 ^1014
