ID 16mm/4mm Dual Wall Heat Shrink Tube With Glue Dual Wall Tubing

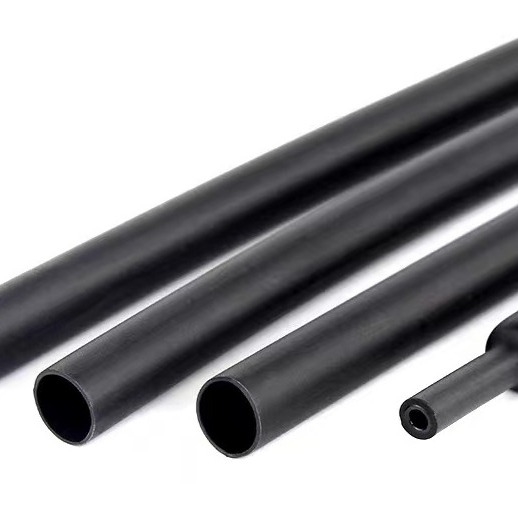

  • ID 16mm/4mm Dual Wall Heat Shrink Tube With Glue Dual Wall Tubing

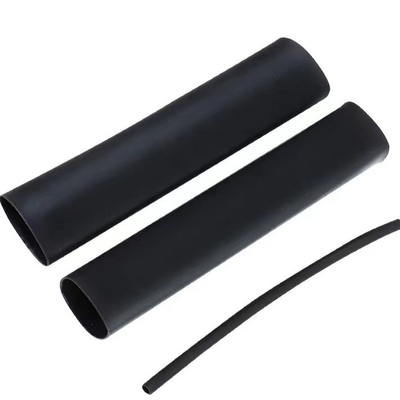

  • ID 16mm/4mm Dual Wall Heat Shrink Tube With Glue Dual Wall Tubing

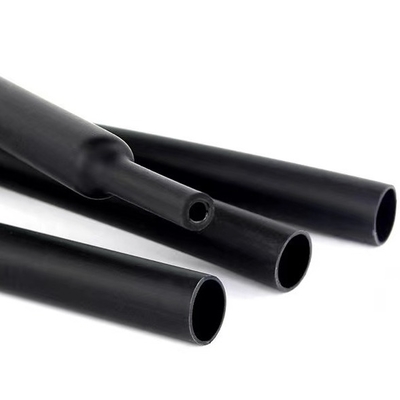

  • ID 16mm/4mm Dual Wall Heat Shrink Tube With Glue Dual Wall Tubing
Place of Origin China
Brand Name Long
Certification ISO
Model Number 16/4mm
Minimum Order Quantity 2m
Price 0.039
Packaging Details Roll/Carton
Delivery Time 2-5days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 200000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Shrink Ratio 4:1 Flame Retardant Out Jacket Only
Superior Sealing Against Superior Sealing Against Water Size 16mm Shrink To 4mm
Inner Inner Adhesive Bonds To Plastics, Steel And Polyethylene With Adhesive To Plastics, Steel And Polyethylene
Continuous Operating Temperature -45℃- 120℃ Shrink Temperature 120℃
Highlight

16mm Dual Wall Heat Shrink Tube

,

Adhesive lined Dual Wall Heat Shrink Tube

,

Adhesive lined heat shrink tubing
Leave a Message
Product Description

4:1 heat shrink tubing 16mm/4mm with glue dual wall tubing



  Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.

Thickened adhesive, waterproof, anti-corrosion, wear resistance, good insulation.





Features



●  4:1 shrink ratio



●  Low longitudinal shrinkage



●  Superior sealing against water, moisture or other contaminants



●  Ideal for connector sealing covering large diameter differences



●  Inner adhesive bonds to plastics, steel and polyethylene



●  Flame retardant( out jacket only)



●  Continuous operating temperature:-45℃- 126℃



●  Shrink Temperature:124℃



Dimensions





Size Expanded After Recovery Standard Package
Inch



ID 16mm/4mm Dual Wall Heat Shrink Tube With Glue Dual Wall Tubing 0

 Internal Diameter mm Internal Diameter mm Total Wall Thickness mm Adhesive Thickness mm Spool Length M/spool
5/32 4.0 4,0 1.0 1.00±0.15 0.40±0.15 200
1/4 6.0 6,0 1.5 1.10±0.15 0.40±0.15 100
5/16 8.0 8,0 2.0 1.50±0.15 0.50±0.15 50
1/ 2 12.0 12,0 3.0 1.70±0.15 0.50±0.15 1.22 OR 25M/Roll
5/8 16.0 16,0 4.0 2.00±0.15 0.60±0.15 1.22 OR 25M/Roll
25/32 20.0 20,0 5.0 2.30±0.25 0.60±0.15 1.22 OR 25M/Roll
1 24.0 24,0 6.0 2.60±0.25 0.60±0.15 1.22 OR 25M/Roll
1-1/4 32.0 32,0 8.0 3.00±0.30 0.70±0.15 1.22 OR 25M/Roll
1-1/2 40.0 40,0 10.0 3.00±0.30 0.70±0.15 1.22 OR 25M/Roll
2 52.0 52,0 13.0 3.30±0.30 0.70±0.15 1.22 OR 25M/Roll



Technical Data
Property Test Method Stantard Typical Performance
Tensile Strengtn(MPa) ASTM D2671 ≥10.4 11.5
Elongation(%) ASTM D2671 ≥300 450
Tensile Strengtn after aging (MPa) UL224 158℃X168hr ≥7.3 8.5
Elongation after aging(%) UL224 158℃X168hr ≥200 350
Flammability ASTM D2671B   Self-extinguish within 30s
Dieletric strength(kv/mm) IEC243 ≥15 17.5
Volume resistivity(Ω.cm) ASTM D876 ≥1X1014 2.5X1014



Hot Melt Adhesive Property





Property Test Method Stantard
Water Absorption ASTM D570 ≤0.2%
Sofening Point(℃) ASTM E28 90±5
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm



  Changzhou Longchuang Insulating Material Co., Ltd is a high-tech enterprise with headquarter in Changzhou, China. Founded in 2010,The Long brand has always been a guarantee for the supply of products and services. From product design and raw materials purchasing to final inspection and testing, Longchuang has a perfect quality assurance program covering the entire production process. So far, we have been successfully certified by ISO 9001, ISO 14001, ISO/TS 16949, UL, CSA, 3C, etc.

At Longchuang, we know this can be done.





ID 16mm/4mm Dual Wall Heat Shrink Tube With Glue Dual Wall Tubing 1
