Single Wall Heat Shrink Tubing
Created with Pixso.

Flame Retardant Heat Shrink Tubing Without Glue Inside

Flame Retardant Heat Shrink Tubing Without Glue Inside

Brand Name: Long
Model Number: 6mm-H
MOQ: 1m
Price: 0.023
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100000meters per day
Detail Information
Place of Origin:
China
Certification:
ISO9001
Size:
6mm
Color:
Black , White, Yellow And So On
Halogen:
Halogen Free
Flame:
Flame Retardant
If Burning:
Low Smoke Generation If Burning
Operating:
Continuous Operating
Temperature:
99°C
Fully Shrink Temperature:
108°C
Packaging Details:
Roll/Carton
Supply Ability:
100000meters per day
Highlight:

Flame Retardant Heat Shrink Tubing

,

Halogen free Heat Shrink Tubing

,

Halogen free Heat Shrink sleeve

Product Description

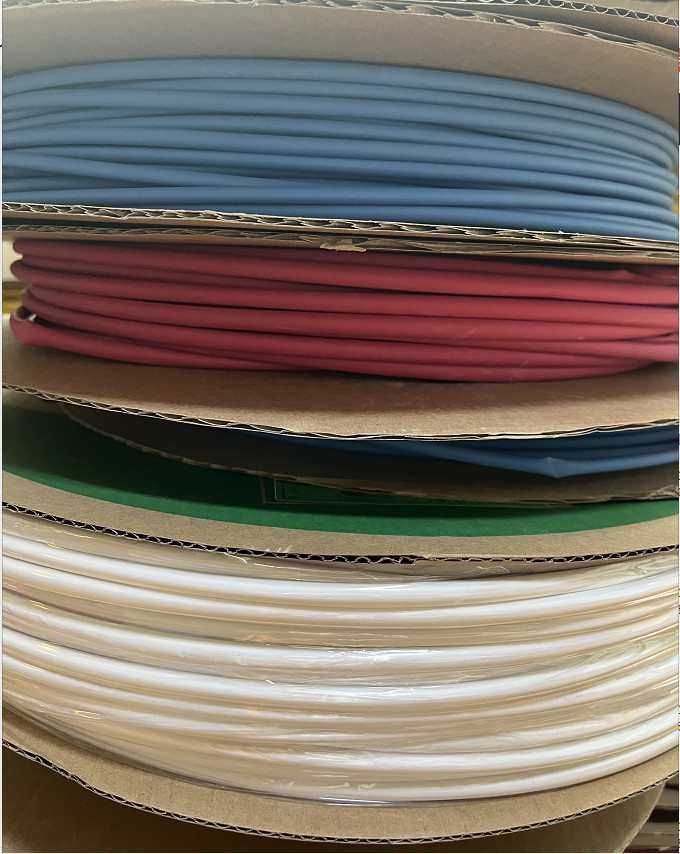

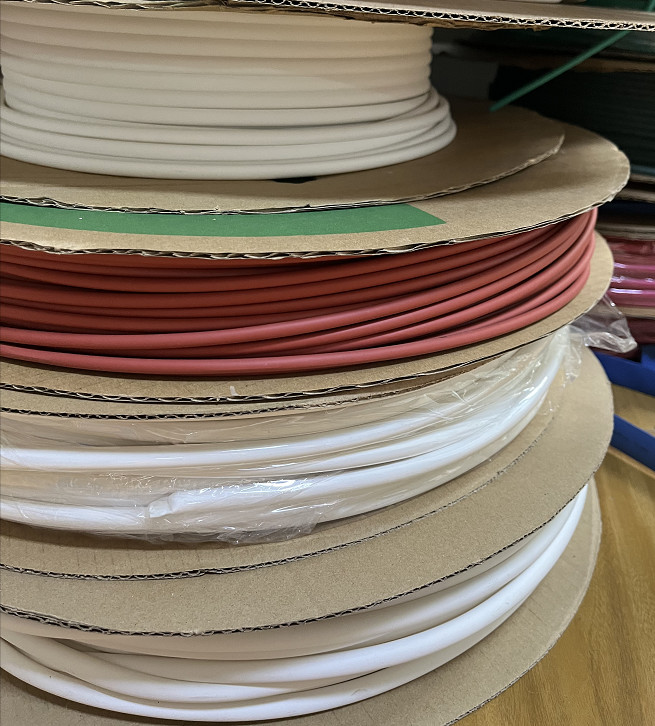

Polyolefin Heat Shrink Tubing Single Wall Without Glue Tubing





Ultra thin wall halogen free.flexible

heat shrink tubing.





Features



Ultra thin wall

Flexible



Halogen free



Flame retardant



low smoke generation if burning



Continuous operating

Temperature:-55°C to 125°C



Fully shrink temperature: 110°C



RoHS and Sony compliant



Dimensions





Size As Supplied After Recovery Standard Package
Inch mm Internal Diameter mm Internal Diameter mm Wall Thickness mm Spool Length M/spooF
1/16 1.0 1.4±0.2 0.65 0.20 200
  1.5 1.9+0.2 0.85 0.20 200
3/32 2.0 2.4±0.2 1.00 0.22 200
  2.5 2.9±0.2 1.30 0.25 200
1/8 3.0 3.4±0.2 1.50 0.28 200
  3.5 3.9±0.2 1.80 0.28 200
  4.0 4.410.2 2.00 0.30 200
3/16 4.5 4.9±0.2 2.30 0.30 100
  5.0 5.5±0.2 2.5 0.32 100
1/4 6.0 6.5±0.2 3.0 0.32 100
5/16 7.0 7.5±0.3 3.5 0.32 100
  8.0 8.5±0.3 4.0 0.32 100
3/8 9.0 9.5+0.3 4.5 0.35 100
  10.0 10.5±0.3 5.0 0.35 100
  11.0 11.5±0.3 5.5 0.40 100
1/2 12.0 12.5±0.3 6.0 0.40 100
  13.0 13.5±0.3 6.5 0.40 100
  14.0 14.5±0.3 7.0 0.40 100
5/8 15.0 15.5±0.4 7.5 0.40 100
  16.0 16.5±0.4 8.0 0.40 100
  17.0 17.5±0.4 8.5 0.40 100
3/4 18.0 18.5±0.4 9.0 0.42 100
  20.0 20.5±0.5 10.0 0.45 100
  22.0 22.5±0.5 11.0 0.45 100
1 25.0 25.5±0.5 12.5 0.45 50





Technical Data



I Property I Test Method Typical Performance I
Tensile strength(MPa) ASTM D 2671 >10.4
Ultimate elongation(%) ASTM D 2671 >200
Tensile strength after heat aged (Mpa) 158°CX168h N7.3
Ultimate elongation after heat aged (%) 158°CX168h ^100
Longitudinal change(%) ASTM D 2671 -5%~+5%
Flammability ASTM D 2671 C method VW-1
Dielectric strength (kV/mm) ASTM D 149 >15
Volume resistivity (Q-cm) ASTM D 876 ^1014





Flame Retardant Heat Shrink Tubing Without Glue Inside 0

  Changzhou Longchuang Insulating Material Co., Ltd is a high-tech enterprise with headquarter in Changzhou, China. Founded in 2010,The Long brand has always been a guarantee for the supply of heat shrink tubing products and services. From product design and raw materials purchasing to final inspection and testing, Longchuang has a perfect quality assurance program covering the entire production process. So far, we have been successfully certified by ISO 9001, ISO 14001, ISO/TS 16949, UL, CSA, 3C, etc.

At Longchuang, we know this can be done.



FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
