12.7mm Watertight Heat Shrink Tubing

  • 12.7mm Watertight Heat Shrink Tubing
Place of Origin China
Brand Name Long
Certification ISO
Model Number 12.7mm
Minimum Order Quantity 1m
Price Can discussible
Packaging Details Roll/Carton
Delivery Time 1-9days
Payment Terms T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability 400000meters per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PE Internal Diameter Mm After Recovery 4.2mm
Shrink Ratio 3:1 Wall Thickness 1.7mm
Super Sealing Against Water, Moisture Or Other Contaminates Continuous Operating Temperature 30°C
Fully Shrink Temperature ^125°C Compliant Sony Compliant
High Light

12.7mm Watertight Heat Shrink Tubing

,

black Watertight Heat Shrink Tubing

,

PE self adhesive heat shrink tubing
Leave a Message
Product Description

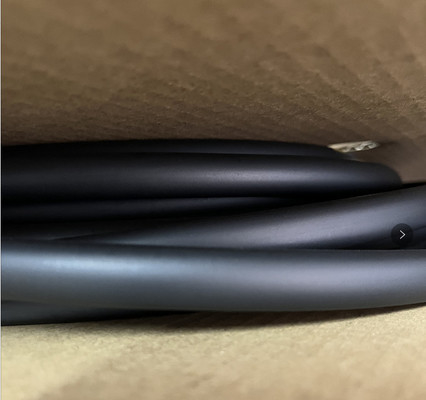

12.7mm Black Dual Wall Heat Shrink Tubing With Adhesive Waterproof ​



The environmental protection double wall pipe is composed of soft flame-retardant polyolefin and hot-melt adhesive. The outer polyolefin insulating flame-retardant material and the inner hot-melt adhesive can buffer mechanical strain and have strong sealing performance.





Features





•  3:1 shrink ratio

•  Halogen free

•  Super sealing against water, moisture or other contaminates

•  Continuous operating temperature:-45°C-125°C

•  Fully shrink Temperature:^125°C



Dimensions



Size Expanded After Recovery Standard Package
Inch mm Internal Diameter mm Internal Diameter mm Total Wall Thickness mm Adhesive Thickness mm Spool Length M/spool
3/32 2.4 2,4 0.8 0.85±0.15 0.40±0.10 200
1/8 3.2 3,2 1.0 0.95±0.15 0.40±0.10 200
3/16 4.8 4,8 1.6 1.10±0.15 0.40±0.10 100
1/4 6.4 6,4 2.2 1.20±0.15 0.45±0.12 100
5/16 7.9 7,9 2.7 1.35±0.15 0.50±0.12 100
3/8 9.5 9,5 3.2 1.45±0.20 0.50±0.12 50
1/2 12.7 12,7 4.2 1.70±0.20 0.50±0.12 1.22OR25M/R0II
5/8 15 15 5.2 1.80±0.20 0.55±0.15 1.22OR25M/Roll
3/4 19.1 19,1 6.3 2.00±0.20 0.55±0.15 1.22OR25M/Roll
1 25.4 25,4 8.5 2.10±0.25 0.55±0.15 1.22OR25M/R0II
1-1/4 30 30 10.2 2.20±0.25 0.60±0.15 1.22 OR25M/Roll
1-1/2 39 39 13.5 2.40±0.25 0.60±0.15 1.22OR25M/Roll
2 50 50 17 2.70±0.25 0.70±0.15 1.22OR25M/R0II
5/2 64 64 21 3.00±0.30 0.70±0.15 1.22OR25M/Roll
3 75 75 25 3.00±0.30 1.00±0.20 1.22OR25M/Roll
7/2 90 90 30 3.00±0.30 1.00±0.20 1.22OR25M/R0II
4 100 100 34 3.00±0.30 1.00±0.20 1.22OR25M/Roll
5 125 125 42 3.00±0.30 1.00±0.20 1.22OR25M/Roll





Technical Data



I Property Test Method Standard I
Tensile Strength(MPa) ASTM D2671 >10.4
Elongation(%) ASTM D2671 >300
Tensile Strength after aging (MPa) UI224 158°CX168hr N7.3
Elongation after aging(%) UI224 158°CX168hr 3200
Flammability ASTM D2671B Self-extinguish within 30s
Dieletric strength(kV/mm) IEC 60243 >15
Volume resistivity(Q.cm) IEC 60093 ^1X1014





Adhesive





Property Test Method Standard I
Water Absorption ASTM D570 <0.5
Sofening Point(°C) ASTM E28 90±5
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm





12.7mm Watertight Heat Shrink Tubing 0



FAQ

Professional Production Quality is Reliable



Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
