Dual Wall Heat Shrink Tube
Created with Pixso.

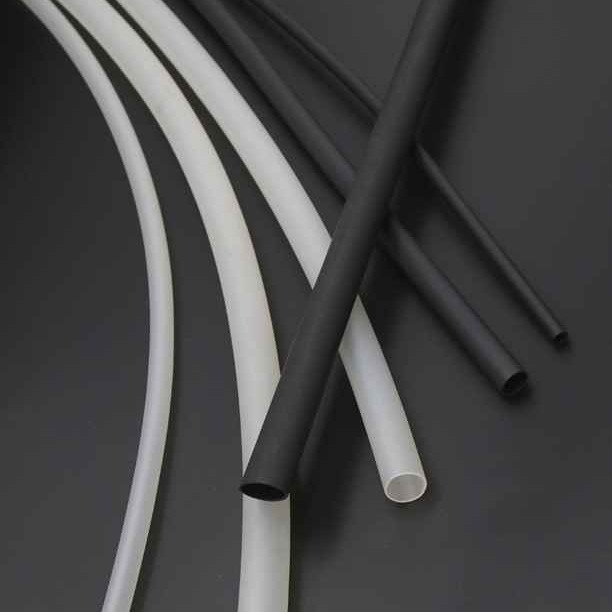

Cross Linked Polyolefin Shrink Tubing 4mm 4x Black Shrink Tubing

Cross Linked Polyolefin Shrink Tubing 4mm 4x Black Shrink Tubing

Brand Name: Long
Model Number: SBRS-4(X)GBK
MOQ: 10m
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 400000meters per day
Detail Information
Place of Origin:
China
Certification:
ISO
Material:
PE
Colour:
Black
Shrink Ratio:
4:1
Feature:
Seals And Protects Against Water, Moisture And Chemicals
Adhesive Bonds Readily To:
PVC, XLPE And PP-EPDM
Shrinks Rapidly For:
Quick Installation
Continuous Operating Temperature:
-45°C-125°C
Initial Shrinkage Temperature:
70°C
Packaging Details:
Roll/Carton
Supply Ability:
400000meters per day
Highlight:

Cross Linked Polyolefin Shrink Tubing

,

4mm Polyolefin Shrink Tubing

,

4x black shrink tubing

Product Description

5/32 4mm Black 4X Adhesive-Lined Cross-Linked Polyolefin Tubing

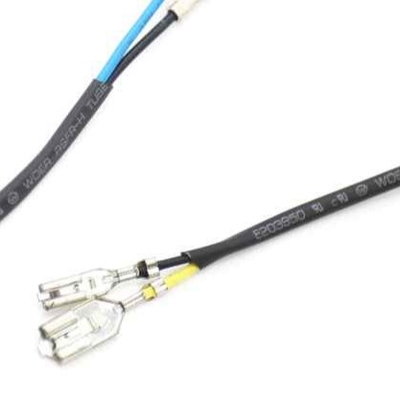

Adhesive lined heat shrink specifically designed to insulate, seal and protect inline splices in automotive wire harnesses and electronic assemblies.



Features





4:1 shrink ratio allows for fewer sizes to cover numerous splice configurations and diameters.



Seals and protects against water, moisture and chemicals



Adhesive bonds readily to PVC, XLPE and PP-EPDM



cable jackets



Shrinks rapidly for quick installation



Continuous operating temperature:-45°C-125°C



Initial shrinkage temperature:70°C



Fully shrink Temperature:^110°C



Dimensions



Size Expanded After Recovery
    Internal Internal Total Wall Adhesive Standard Package
Inch mm Diameter Diameter Thickness Thickness
    Min(mm) Max(mm) Nom(mm) Nom(mm)
5/32 4 4.0 0.95 1.40±0.30 0.60±0.20 1.22OR25M/Roll
1/4 6 6.0 1.27 1.70±0.30 0.80±0.20 1.22OR25M/Roll
5/16 8 8.0 1.65 2.00±0.30 0.95±0.20 1.22OR25M/R0II
2/5 10 10.0 2.00 2.20±0.40 1.10±0.20 1.22 OR25M/Roll
1/2 12 12.0 2.41 2.45±0.40 1.20±0.20 1.22OR25M/Roll
3/4 18 18.0 4.45 2.60±0.40 1.34±0.30 1.22OR25M/Roll



Technical Data



I Property Test Method Standard Typical Performance I
Tensile Strength(MPa) ASTM D2671 ^10.4 11.5
Elongation(%) ASTM D2671 N300 450
Tensile Strength after aging (MPa) UL224 158°CX168hr N7.3 8.5
Elongation after aging(%) UL224 158°CX168hr N200 350
Dieletric strength(kV/mm) IEC 60243 M15 17.5
Volume resistivity(Q.cm) IEC 60093 >1X1014 2.5X1014



Adhesive



Property Test Method Standard I
Water Absorption ASTM D570 <0.2%
Sofening Point(°C) ASTM E28 90±5
Strength of pearing(PE) ASTM D 1000 120N/25mm
Strength of pearing(AL) ASTM D 1000 80N/25mm
