3.0mm Light Blue Thin Wall Halogen Free Flexible Heat Shrink Tubing     Ultra thin wall halogen free.flexible well. Heat shrink tubing with low moq and short time from China manufacture.     Features   • Thin wall without adhesive can be used easily. • Flexible   • Halogen free   • Flame retardant   • Continuous operating • Temperature:-55°C to 125°C   • Fully shrink temperature: 110°C   • RoHS and Sony compliant   Dimensions     Size As Supplied After Recovery Standard Package Inch mm Internal Diameter mm Internal Diameter mm Wall Thickness mm Spool Length M/spooF 1/16 1.0 1.4±0.2 0.65 0.20 200   1.5 1.9+0.2 0.85 0.20 200 3/32 2.0 2.4±0.2 1.00 0.22 200   2.5 2.9±0.2 1.30 0.25 200 1/8 3.0 3.4±0.2 1.50 0.28 200   3.5 3.9±0.2 1.80 0.28 200   4.0 4.410.2 2.00 0.30 200 3/16 4.5 4.9±0.2 2.30 0.30 100   5.0 5.5±0.2 2.5 0.32 100 1/4 6.0 6.5±0.2 3.0 0.32 100 5/16 7.0 7.5±0.3 3.5 0.32 100   8.0 8.5±0.3 4.0 0.32 100 3/8 9.0 9.5+0.3 4.5 0.35 100   10.0 10.5±0.3 5.0 0.35 100   11.0 11.5±0.3 5.5 0.40 100 1/2 12.0 12.5±0.3 6.0 0.40 100   13.0 13.5±0.3 6.5 0.40 100   14.0 14.5±0.3 7.0 0.40 100 5/8 15.0 15.5±0.4 7.5 0.40 100   16.0 16.5±0.4 8.0 0.40 100   17.0 17.5±0.4 8.5 0.40 100 3/4 18.0 18.5±0.4 9.0 0.42 100   20.0 20.5±0.5 10.0 0.45 100   22.0 22.5±0.5 11.0 0.45 100 1 25.0 25.5±0.5 12.5 0.45 50     Technical Data   I Property I Test Method Typical Performance I Tensile strength(MPa) ASTM D 2671 >10.4 Ultimate elongation(%) ASTM D 2671 >200 Tensile strength after heat aged (Mpa) 158°CX168h N7.3 Ultimate elongation after heat aged (%) 158°CX168h ^100 Longitudinal change(%) ASTM D 2671 -5%~+5% Flammability ASTM D 2671 C method VW-1 Dielectric strength (kV/mm) ASTM D 149 >15 Volume resistivity (Q-cm) ASTM D 876 ^1014

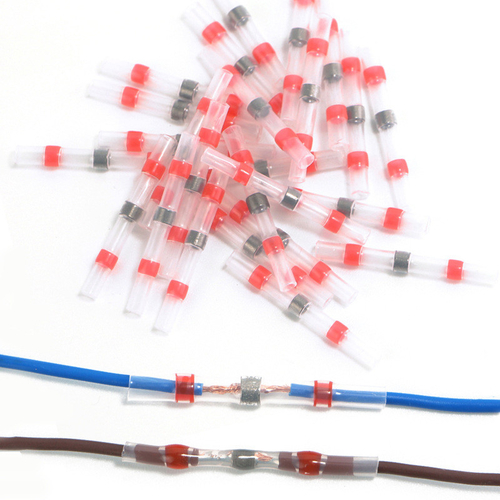

High quality heat shrink connector sell well all over the world due to good quality and nice price!
